SIEMENS SIPLACE ASM ASMPT NOZZLE CUSTOMIZED NOZZLE MANUFACTORUER
We offer Customized nozzle for SIEMENS SIPLACE ASM ASMPT pick and place machine. You can send the drawing or sample of the component, and then we can make Customized nozzle base on the sample or drawing which you offer.
706/906 NOZZLE
ASMPT
00345031-05
| Availability: | |
|---|---|

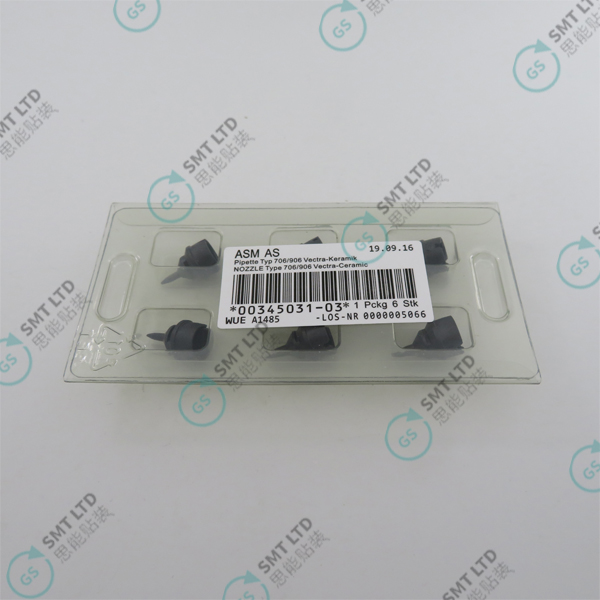

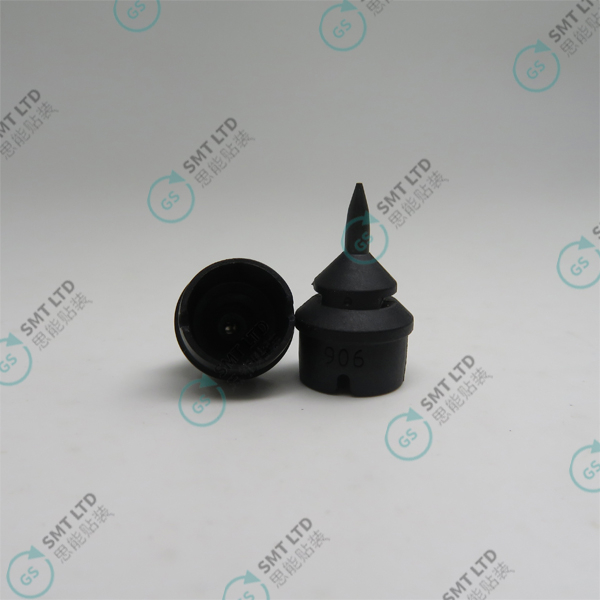

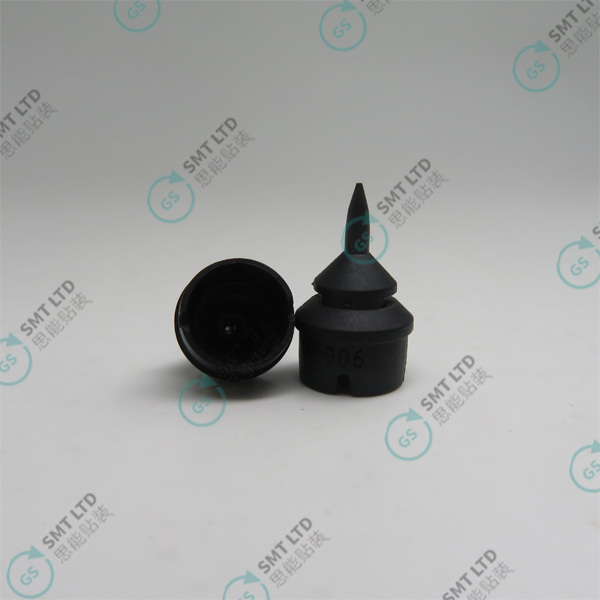

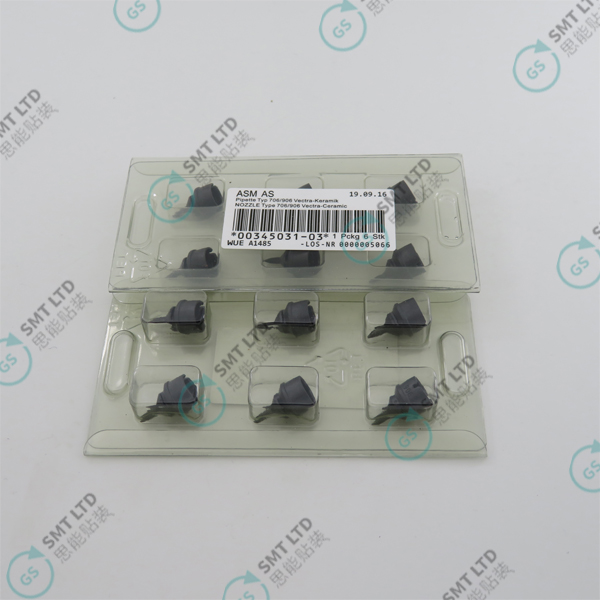

00345031-05 00345031 345031 00345031-04 00345031-03 00345031-06 NOZZLE Type 706/906 Vectra-Ceramic
We offer all brand SMT spare parts ,such as feeder parts , machine parts , nozzles, filter, dispensor, belt, Feeder Carts, AI part ,etc.
We have good source and large ready stock for major brand SMT automotive spare parts
Brand: Fuji, Hitachi/Sanyo,Juki, Panasonic(KME), Assembleon/Phillips, Sanyo, SIPLACE/SIEMENS, Universal, DEK , I pulse ,and Yamaha.
If you have any inquires for SMT parts , please don’t hesitate to contact us with below E-mail address:
SIEMENS SIPLACE ASM ASMPT NOZZLES FOR SALES:
| 00116933S03 | 00116933 | 116933 | SIPLACE Docking Station COT40 for provision of an infrastructure for communication between Setup Center and the X-Feeder modules. Stand alone operation allows the X-Feeders to be supplied with power. Can be set to the SMEMA heights 830/ 900/ 930/ 950 mm. Line voltage: 88-264V. Compressed air pressure: 5-10 bar. |
| 00116936-01 | 00116936 | 116936 | SIPLACE Splice Detection Hub for Table Controller: This item is needed to prepare a SIPLACE station for splice detection. It contains a hub for connection of up to 4 table controllers for SIPLACE HS-xx. Also, cabling and mounting material is included. Additionally, the respective table controller(s) and splice sensors need to be ordered. |
| 00116961-01 | 00116961 | 116961 | Protection Shield for SIPLACE Placement Stations 1 feeder location. |
| 00116962-01 | 00116962 | 116962 | Protection Shield for SIPLACE Placement stations 6-10 feeder locations. |
| 00116963-01 | 00116963 | 116963 | Protection Shield SIPLACE Placement stations 11-20 feeder locations. |
| 00117010S03 | 00117010 | 117010 | Dip module f. fluxes and adhesive |
| 00117130S06 | 00117130 | 117130 | DCA camera |
| 00117185-01 | 00117185 | 117185 | Retrofitting kit to 110/208V operating voltage for SIPLACE S/F. Delivery as a part of station free of charge. Attention: If retrofitted at a costumer a voltage savety check (DIN EN 60204)is necessary. For assistance please ask SIPLACE SMT Service. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses Voltage test required |
| 00117261-03 | 00117261 | 117261 | The Head Re-Configuration Kit is necessary to exchange the Collect and Place Head of SIPLACE placement station with Head Modularity, SIPLACE F5 HM (117500), in a 6-Segment Collect and Place Head. The Kit includes: 6-Segment Collect and Place Head, Set Nozzles, Set Sleeves, Cover, Tools for Head exchange, Box for replaced Head, Technical Manuel. With this kit the Head exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer for the 6-Segment Collect and Place Head has to be ordered separately. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00118012-01 | 00118012 | 118012 | Package for placement of 0201 components (size 0.6 x 0.3mm). Suitable for all SIPLACE F5 HM, S-27 HM, HS-xx, HF-Series and Compact. The Package includes: 12 x Nozzle type 902, 0201 Handbook. In addition the special 3 x 8mm 0201 feeder module is necessary for any 0201 placement (item number: 141099). System requirement: Station computer >= 405.01 .Line computer >= 501.01. |
| 00118021S01 | 00118021 | 118021 | The component sensor as additional optical sensor module verifies the presence / absences of a small component short just before placement / pickup respectively. Suitable for all SIPLACE S-27 HM, X/D-Series and HS-xx in combination with the 12-Segment Collect and Place Head. One Package per Head is required. The component sensor requires the modular head board. This might have to be retrofitted at SIPLACE S-23 HM item no. 359488 (and in field upgraded SIPLACE S-25 HM) and SIPLACE HS-50 item no. 359489. When using the nozzle type 906 for 0201 placement the sensor is mandatory. System requirement: Station computer >= 503.01 .Line computer >= 503.01 or SIPLACE PRO 1.3. |
| 00118100-01 | 00118100 | 118100 | Mechanical Head Crash Protection for SIPLACE S-20, S-23 HM, S-25 HM and S-27 HM to avoid a head crash with feeders and/or feeder flaps. Restriction 6-Segment Collect and Place Head with nozzels type 820/821/921. |
| 00118101-01 | 00118101 | 118101 | Adapter device SIPLACE S/F at changeover table with wheels, for reel holder (item no:141204) of 3x8mm feeders (item no:141098,141099). |
| 00118261-03 | 00118261 | 118261 | Nozzle changer for 12-Segment Collect and Place Head of the SIPLACE S-27 HM. Two nozzle changers are needed, one per head. Stationssoftware higher than 502.xx, Linesoftware higher than 502.xx. Option contains 8 magazines for 12 nozzles. |
| 00118262-01 | 00118262 | 118262 | Nozzle changer for 6-Segment Collect and Place Head of the SIPLACE S-27 HM. Stationssoftware higher than 502.xx; Linesoftware higher than 502.xx. Option contains: 2 magazines for big nozzles and 3 magazines for little nozzles. |
| 00118271-01 | 00118271 | 118271 | This item is required one time per changeover table. One SIPLACE S/F can be equipped with 2 table controllers (option MTC does not fit!). The following items are included: Splice Detection Table Controller (1 pcs). |
| 00118271S01 | 00118271 | 118271 | This item is required one time per changeover table. One SIPLACE S/F can be equipped with 2 table controllers (option MTC does not fit!). The following items are included: Splice Detection Table Controller (1 pcs). |
| 00118525-01 | 00118525 | 118525 | Additional mechanical PCB alignment for S-27 HM dual conveyor: with this option PCBs with a length/width ratio >2/1 can be transported with the small side at the dual conveyor belts into the placement area. This option is only available for dual conveyor. |
| 00118526-01 | 00118526 | 118526 | Additional mechanical PCB alignment for S-27 HM single conveyor: with this option PCBs with a length/width ratio >2/1 can be transported with the small side at the single conveyor belts into the placement area. This option is only available for single conveyor. |
| 00118528-01 | 00118528 | 118528 | Long Board Support for SIPLACE S-27 HM Single Conveyor: this Option supports PCBs up to a size of 610mm x 460mm (24 inch x 18 inch ). This Option must be ordered per conveyor lane.This option can only be used for single conveyor. Content: 2 supports long PCBs, 1 lifting table option SC. |
| 00119011-01 | 00119011 | 119011 | Adapter device HS-xx changeover table with wheels version 2 (119022) for reel holder (item no:141204) of 3x8mm feeders (item no:141098,141099). Not compatible to COT D4 119821. |
| 00119016-01 | 00119016 | 119016 | Air filter box for SIPLACE HS-xx inclusive fan with increased power and covers with filter mat. 1 package per machine required. This package can be used for all machine types HS-50 and following. |
| 00119030-01 | 00119030 | 119030 | Extension Cable (1.5m long) from external Power Supply to HS-xx/D4 feeder changeover table. |
| 00119160-01 | 00119160 | 119160 | One set of nozzle changers for 12-Segment Collect and Place Head HS-xx. A maximum of eight are possible for SIPLACE HS-xx. A maximum of two for each gantry.Option includes: 4 nozzle changers with 5 magazines for 12 nozzles, 4 nozzle discarding devices. Station software version from 501.xx, line computer software version 501.xx. |
| 00119161-01 | 00119161 | 119161 | Nozzle changer for 12-Segment Collect and Place Head SIPLACE HS-xx. A maximum of eight are possible for SIPLACE HS-xx. A maximum of two for each gantry. Option includes: 5 magazines, each for 12 nozzles. Station software version from 501.xx, line computer software version from 501.xx. |
| 00119162-01 | 00119162 | 119162 | Additional set of nozzle changers for 12-Segment Collect and Place Head HS-xx. A maximum of eight are possible for SIPLACE HS-xx. A maximum of two for each gantry. Option includes: 4 nozzle changers with 5 magazines for 12 nozzles, 4 nozzle discarding devices, 1 SLIO-module. Station software version from 501.xx. |
| 00119185-02 | 00119185 | 119185 | Retrofitting kit to 230/400V operating voltage for SIPLACE HS-xx/D4. Delivery as a part of station free of charge. Attention: If retrofitted at a customer a voltage savety check (DIN EN 60204) is necessary. For assistance plese ask SIPLACE SMT Service. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses Voltage test required |
| 00119405-01 | 00119405 | 119405 | Long Board Option for SIPLACE HS-50: with this Option we can handle pcb's up to 610mm x 460mm (24 inch x 18 inch) in the single conveyor mode. This option can be used for single and dual conveyor systems. |
| 00119610S02 | 00119610 | 119610 | The Feeder Protection consists of a cover over the feed area (119622,119755). If a feeder is pressed up or if feeder flaps are projecting upwards, the EMERGENCY OFF is actuated. The option contains one protection plate, which can be installed in location 2 or 4. |
| 00119618S02 | 00119618 | 119618 | CO camera, stationary P+P (type 20) 8x8 |
| 00119633S02 | 00119633 | 119633 | The Feeder Protection consists of a cover over the feed area (119622,119755). If a feeder is pressed up or if feeder flaps are projecting upwards, the EMERGENCY OFF is actuated. The option contains one protection plate, which can be installed in location 1 or 3. |
| 00119665-01 | 00119665 | 119665 | The 12-Segment Collect and Place Head Re-Configuration Kit is necessary to exchange the actual Placement Head of the SIPLACE HF and HF/3 (119600 and 119650) Placement Machine with Head Modularity, in a 12-Segment Collect and Place Head. The Kit includes: 12-Segment Collect and Place Head, Set Nozzles, Set Sleeves, Cover, Head Servo Cards, Head Adapter board, Cables, additional parts, Tools for Head exchange, Box for replaced Head and a Technical Manual. With this kit the Head exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer for the 12-Segment Collect and Place Head has to be ordered separately. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00119666-01 | 00119666 | 119666 | The 6-Segment Collect and Place Head Re-Configuration Kit is necessary to exchange the actual Placement Head of the SIPLACE HF and HF/3 (119600 and 119650) Placement Machine with Head Modularity, in a 6-Segment Collect and Place Head. The Kit includes: 6-Segment Collect and Place Head, Set Nozzles, Set Sleeves, Cover, Head Servo Cards, Head Adapter board, Cables, additional parts, Tools for Head exchange, Box for replaced Head and a Technical Manual. With this kit the Head exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer for the 6-Segment Collect and Place Head has to be ordered separately. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00119689-02 | 00119689 | 119689 | PCB BARCODE READER 2D FOR S,F This scanner assembly is used together with the mounting kit 00119442-01 (in SIPLACE S, F). |
| 00119718S02 | 00119718 | 119718 | Additional high resolution, stationary component camera digital in X-Series,D1,D3 machines for centering of FlipChips. With this head a component range from 0.2mm x 0.2mm up to 16mm x 16mm can be placed. The smallest ball diameter is 80um, the min. Lead / Ball pitch 250um / 140um. |
| 00119720S01 | 00119720 | 119720 | Package for placement of 0201 components (size 0.6mm x 0.3mm). Suitable for SIPLACE X/D-Series (SCSW 605)equipped with the 12-Segment Collect and Place head. The Package includes: High resolution camera (Exchange between standard digital component camera. The standard digital component camera is then not part of delivery), 24 x Nozzle type 906 oval tip,Component Sensor, Reconfiguration Instructions for 0201 placement. A 0201 Paket is essential for each placement head. In addition for the D-Series (and X-Series equipped with S-Feeders) the special 3x8mm 0201 feeder module is necessary for any 0201 placement (item number: 141099).This item number can only be ordered in combination with SIPLACE X/D-Series. It cannot be ordered seperately. |
| 00119721-01 | 00119721 | 119721 | The Twin Head Re-Configuration Kit is necessary to exchange the actual Placement Head of the SIPLACE X-Series/D3 (119700 / 119750 / 119780 / 119870) Placement Machine with Head Modularity, in a Twin Head. The Kit includes: 2 Pick and Place Modules, Stationer Component-Camera (Digital), a nozzle changer with 3 Dual Garage Magazine and 1 Single Garage Magazine, Cover, Head Servo Cards, Head Adapter board, Vision Controller, Cables, additional parts, Tools for Head exchange, Box for replaced Head and a Technical Manual. With this kit the Head Exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer for the 6 nozzle head has to be ordered separately. The customer service isn not included in this price. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00119747-01 | 00119747 | 119747 | Holder for Nozzle Changer TwinHead for MTC X-Ser. |
| 00119753-01 | 00119753 | 119753 | The Re-Configuration Kit Highforce Head is necessary to exchange the TwinHead of a placement machine of SIPLACE HF/X-Series by an Highforce Head The Highforce Head is a modified TwinHead, which is able to reach placement forces up to 30N (+/-15%) with SIPLACE HF/D3/X-Series. The kit includes: two Highforce Pick and Place Modules, servo-cards, additional parts, one software CD, tools for head exchange, box for replaced head and a technical manual. Customer service is not included. If the customer sends the used TwinHead modules back to us, he will get a credit of 60% of the original spare part price (03001095S03).Preconditions:Line software Siplace Pro 2.1SP2 or higher, Station software 505.03 or higher. |
| 00119754-01 | 00119754 | 119754 | The Re-Configuration Kit Highforce Twin Head is necessary to exchange the Collect and Place Head of a placement machine of SIPLACE X-Series by an Highforce TwinHead. The Highforce TwinHead is a modified TwinHead, which is able to reach placement forces up to 30N (+/-15%) with SIPLACE X-Series. The kit includes: two Highforce Pick and Place Modules, one stationary camera system, one nozzle changer with three standard magazines (dual garage) and one magazine for customized nozzles, head protection cover, servo-cards, head adaptor boards, cables, additional parts, one software CD, tools for head exchange, box for replaced head and a technical manual. Customer service is not included. Preconditions:Line software Siplace Pro 4.1 or higher, Station software 603.01 or higher. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00119760-01 | 00119760 | 119760 | The 12-Segment Collect and Place Head digital Re-Configuration Kit is necessary to exchange the actual Placement Head of the SIPLACE X-Series/D3 (119700,119750,119780,119870) Placement Machine with Head Modularity, in a 12-Segment Collect and Place Head with Digital Camera. The Kit includes: 12-Segment Collect and Place Head digital, Set Nozzles, Set Sleeves, Cover, Head Servo Cards, Head Adapter board, Cables, additional parts, Tools for Head exchange, Box for replaced Head and a Technical Manual. With this kit the Head exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer for the 12-Segment Collect and Place Head digital has to be ordered separately. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00119761-01 | 00119761 | 119761 | The 6-Segment Collect and Place Head digital Re-Configuration Kit is necessary to exchange the actual Placement Head of the SIPLACE X-Series (119700,119750,119780) Placement Machine with Head Modularity, in a 6-Segment Collect and Place Head with Digital Camera. The Kit includes: 6-Segment Collect and Place Head digital, Set Nozzles, Set Sleeves, Cover, Head Servo Cards, Head Adapter board, Cables, additional parts, Tools for Head exchange, Box for replaced Head and a Technical Manual. With this kit the Head exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer for the 6-Segment Collect and Place Head digital has to be ordered separately. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00119762-01 | 00119762 | 119762 | The 20-Segment Collect and Place Head digital Re-Configuration Kit is necessary to exchange the actual Placement Head of the SIPLACE X-Series (119700,119750,119780) Placement Machine with Head Modularity, in a 20-Segment Collect and Place Head digital. The Kit includes: 20-Segment Collect and Place Head, Set Nozzles, Head Servo Cards, Head Adapter board, Cables, additional parts, Tools for Head exchange, Box for replaced Head and a Technical Manual. With this kit the Head exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer (119715/119716) for the 20-Segment Collect and Place Head digital has to be ordered separately. Additional recommended the Verify component reject bin (116848). Mandatory required are Changeover Table X-Series (119722) and X-Feeder. Attention: Not for SIPLACE X4i. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00119775S01 | 00119775 | 119775 | Package for placement of 0201 components (size 0.6mm x 0.3mm). Suitable for SIPLACE D4i/D2i/D1i equipped with the 12-Segment Collect and Place head. The Package includes: High resolution camera (Exchange against standard digital component camera. The standard digital component camera is then not part of the delivery), 24 x Nozzles type 906 oval tip, Component Sensor, Reconfiguration Instructions for 0201 placement. A 0201 package is essential for each placement head. This item number can only be ordered in combination with new SIPLACE Di-Series. It cannot be ordered separately. Machine System requirement: Station Software from 605.03 SP2 and SIPLACE Pro from Version 10.0 or higher. |
| 00119786-02 | 00119786 | 119786 | vacuum pump install kit for X2,X3,X4 |
| 00119787-02 | 00119787 | 119787 | Vacuum pump for X-series |
| 00119860-01 | 00119860 | 119860 | The Reconfigurationkit C&P is neccessary to exchange the 6-Segment Collect and Place Head of the D1/D2 with a 12-Segment Collect and Place Head. The Kit includes: 12-Segment Collect and place Head, Component camera, Set Sleeves, Cover, Tools for Head exchange, Box for replaced Head, Nozzles (Type 904) and a technical manual for the head exchange. With this kit the Head exchange can be performed by trained Service personal at customer side within 8 hours. If required, the automatic nozzle changer for the 12-Segment Collect and place head has to be ordered seperatly. |
| 00119861-01 | 00119861 | 119861 | The Reconfigurationkit C&P is neccessary to exchange the 12-Segment Collect and Place Head of the D1/D2 with a 6-Segment Collect and Place Head. The Kit includes: 6-Segment Collect and place Head, Component camera, Set Sleeves, Cover, Tools for Head exchange, Box for replaced Head, Nozzles (Type 904) and a technical manual for the head exchange. With this kit the Head exchange can be performed by trained Service personal at customer side within 8 hours. If required, the automatic nozzle changer for the 6-Segment Collect and place head has to be ordered seperatly. |
| 00119862-01 | 00119862 | 119862 | The Adapter Kit SIPLACE D1 P&P Head is necessary to upgrade a Siplace D1 machine with only a Collect & Place Head to a SIPLACE D1 with an additional P&P Head. After the upgrade a wider component range could be achieved, in detail for larger and higher components. For more details regarding wider component range and other technical points, please see the actual specification of the SIPLACE D1. This adapter kit includes the Pick and Place Module, Nozzle changer P &P which includes 2 dual magazines for standard nozzles and 1 magazine for special nozzles, stationary Component Camera (Type 36), Servo cards, electrical and pneumatic connections, small parts and a technical manual. The retrofit time for the machine of the hardware parts will be approx. 4 hours (excluding additional effort on programming in SIPLACE Pro). |
| 00119863-01 | 00119863 | 119863 | The Adapter Kit SIPLACE D1 C&P 6 Head is necessary to upgrade a Siplace D1 machine with only a Pick & Place Head to a SIPLACE D1 with an additional 6 Segment Collect & Place Head. After the upgrade a wider component range could be archived and due to the Collect & Place principle also a higher placement rate with smaller components. For more details regarding higher performance and wider component range, please see the specification of the SIPLACE D1. This adapter kit includes the 6 Segment Collect & Place Head, 12 Sleeves, Component Camera (Type 29), Servo cards, electrical and pneumatic connections, small parts and a technical manual. If required, the automatic nozzle changer for the 6 Segment Collect & Place head has to be ordered separately (Item No. 119866). The retrofit time for the machine of the hardware parts will be approx. 4 hours (excluding additional effort on programming in SIPLACE Pro). |
