Efficient storage and management of SMT (Surface Mount Technology) reels are critical for electronics manufacturers. With advancements in technology, SMT reel storage boxes have evolved to offer more than just space-saving; they now integrate features that enhance productivity, protect components, and streamline operations. This article explores the essential features to consider when selecting an SMT reel storage box and why these features matter.
SMT reels hold electronic components used in PCB (Printed Circuit Board) assembly. Proper storage is not just about organization; it ensures the integrity of sensitive components, reduces errors during production, and optimizes floor space. Modern SMT reel storage boxes are designed to meet these needs while adapting to the demands of Industry 4.0.
- Space Optimization: Vertical designs maximize storage capacity in limited spaces.
- Component Protection: Features like humidity control and ESD (Electrostatic Discharge) protection prevent component damage.
- Operational Efficiency: Automated systems reduce retrieval times and improve workflow.
- Inventory Accuracy: Integration with software systems ensures real-time inventory tracking.
- Scalability: Modular designs allow manufacturers to expand their storage capacity as production demands grow.
Adjustable shelving allows for flexibility in accommodating reels of different sizes, typically ranging from 7-inch to 15-inch diameters. This feature ensures that the storage box can adapt to various production requirements, reducing the need for multiple storage solutions. Some advanced systems even allow tool-free adjustments, making it easier for operators to reconfigure the shelves as needed.
Maintaining optimal humidity levels is crucial for protecting sensitive electronic components from corrosion and fungus. Advanced SMT reel storage boxes come equipped with PLC-controlled systems that regulate humidity levels between 1% and 60% RH. This feature is particularly important for manufacturers working with moisture-sensitive devices (MSDs). Additionally, some systems include real-time monitoring and alerts to notify operators of any deviations from pre-set humidity levels.
Static electricity can damage electronic components, making ESD protection a vital feature. Many modern storage solutions incorporate anti-static materials or grounding mechanisms to safeguard against electrostatic discharge. For environments where static sensitivity is high, look for boxes with integrated ESD-safe coatings or conductive shelving.
A compact design maximizes floor space utilization, while modularity allows manufacturers to expand their storage capacity as needed. For instance, some systems can store up to 880 reels in just 2.5 square feet, making them ideal for high-density environments. Modular designs also provide flexibility for manufacturers who anticipate scaling their operations in the future.
Automation is a game-changer in SMT reel storage:

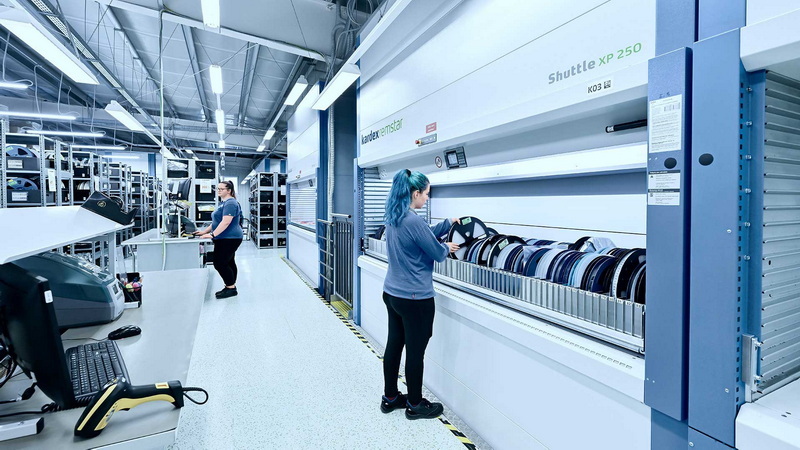

- Automated Retrieval: Systems equipped with sensors and LEDs guide operators to the correct reel location, reducing retrieval times to seconds.
- Integration with MES/ERP Systems: Smart storage boxes can connect with Manufacturing Execution Systems (MES) or Enterprise Resource Planning (ERP) software for real-time inventory updates.
- Error Reduction: Automated systems minimize human errors during material handling.
- Barcode/QR Code Scanning: Some systems include scanners for quick identification of reels, further streamlining inventory management.
High-quality materials like stainless steel or industrial aluminum alloys ensure durability and long-term use. These materials also contribute to the box's resistance against environmental factors like moisture or physical wear. Additionally, reinforced designs ensure that even heavy-duty reels can be stored without compromising structural integrity.
To prevent unauthorized access or tampering, many storage boxes include locks, alarms, or even biometric security systems. These features are essential for safeguarding valuable or sensitive components. Advanced models may also offer password-protected access or RFID-based security measures.
Energy-efficient designs reduce operational costs without compromising performance. For example, some systems use advanced dehumidification technologies that consume minimal energy while maintaining stable environmental conditions. Energy efficiency not only lowers costs but also aligns with sustainability goals—a growing priority in manufacturing industries.
While the above features cover most essential aspects of an SMT reel storage box, several additional capabilities can further enhance its functionality:
Some advanced models include IoT-enabled sensors that provide real-time data on environmental conditions inside the box—such as temperature, humidity levels, and ESD status—via mobile apps or desktop dashboards.
Multi-layer configurations maximize vertical space utilization while ensuring easy access to all stored reels. This design is particularly useful for manufacturers dealing with high-volume production cycles.
Customization options allow manufacturers to tailor their storage solutions based on specific requirements:
- Mixed reel sizes
- Specialized shelving materials
- Additional security features
For manufacturers requiring flexible workspace arrangements, portable SMT reel storage boxes equipped with wheels or casters provide mobility without sacrificing functionality.
To ensure you select the right SMT reel storage box for your needs:
1. Assess your current production requirements and forecast future growth.
2. Prioritize features that align with your operational goals (e.g., automation vs manual systems).
3. Compare ROI across different models—consider both initial investment costs and long-term savings.
4. Consult with vendors offering customization options if your needs are unique.
5. Test compatibility with existing MES/ERP software systems before purchase.
Selecting the right SMT reel storage box is a strategic decision that impacts efficiency, component safety, and overall production quality. By focusing on features like adjustable shelving, climate control, ESD protection, automation, modularity, durability, security measures, and energy efficiency, manufacturers can ensure their storage solution meets both current and future needs.
In addition to these essential features, considering advanced capabilities such as real-time monitoring or multi-layer configurations can further optimize operations in high-demand environments. Ultimately, investing in a high-quality SMT reel storage box will not only protect valuable electronic components but also improve workflow efficiency and inventory accuracy—key factors in maintaining competitiveness in today's fast-paced electronics manufacturing industry.
An SMT reel storage box is designed to store and protect electronic components mounted on reels used in surface mount technology (SMT) manufacturing processes. It ensures proper organization, protects components from environmental damage such as moisture or static electricity, and enhances operational efficiency by streamlining retrieval processes.
Humidity control prevents moisture-related issues such as corrosion or fungus growth on sensitive electronic components stored on reels. Advanced systems use PLC controllers to maintain humidity levels between 1% and 60% RH while providing alerts if conditions deviate from optimal ranges.
Automation streamlines operations by enabling quick retrieval of reels using sensors and LED guidance systems while integrating with MES/ERP software for real-time inventory management updates. Automated systems also reduce human errors during material handling processes.
Most SMT reel storage boxes accommodate reels ranging from 7-inch to 15-inch diameters with widths between 8mm and 56mm. Adjustable shelving ensures compatibility with various reel sizes while maximizing space utilization within the box.
Yes! Many modern SMT reel storage solutions are designed with energy efficiency in mind—for example using low-energy dehumidification technologies or IoT-enabled monitoring systems that optimize power usage while maintaining stable environmental conditions inside the box.
