Chip mounters, or pick and place machines, are automated systems that accurately place surface mount components (SMCs) onto PCBs. These machines are critical for high-speed, high-precision PCB assembly, enabling the production of smaller, more complex electronic devices.
Panasonic offers a range of chip mounters designed to meet diverse production needs[3]:
* High-Speed Models: Designed to reduce manpower on the mounting floor, enabling high-speed and high-precision mounting. High-speed mounting of large and odd-form components is possible by changing supply units[3].
* Medium-Speed Models: Provide a one-machine solution optimal for high-mix, low-volume production and prototyping[3].
* NPM Series: A versatile series including models like the NPM-W2, NPM-D3, and NPM-TT2. These are modular, dual-gantry machines designed for high throughput and accuracy[2][6].
* AM100: A scalable single gantry hybrid drive platform[5].
Panasonic chip mounters are known for incorporating advanced technologies:
* Multi-Recognition Camera: The NPM-W2 features a Multi Recognition Camera that combines 2D alignment, component thickness inspection, and 3D coplanarity measurement[4].
* High-Accuracy Placement: Many models boast high placement accuracy, with some achieving ±25μm Cpk ≥ 1.0 for chip components[2][4].
* Modular Design: The NPM series features a modular design allowing for flexible configuration and easy adaptation to changing production needs[2][6].
* Linear Motor Drive: High-accuracy, low-maintenance, linear-motor driven gantry systems are used for precise and reliable movement[2][6].
* Lightweight Placement Heads: Models like the NPM-W2 utilize lightweight 16-nozzle heads for high-speed placement[2][4].

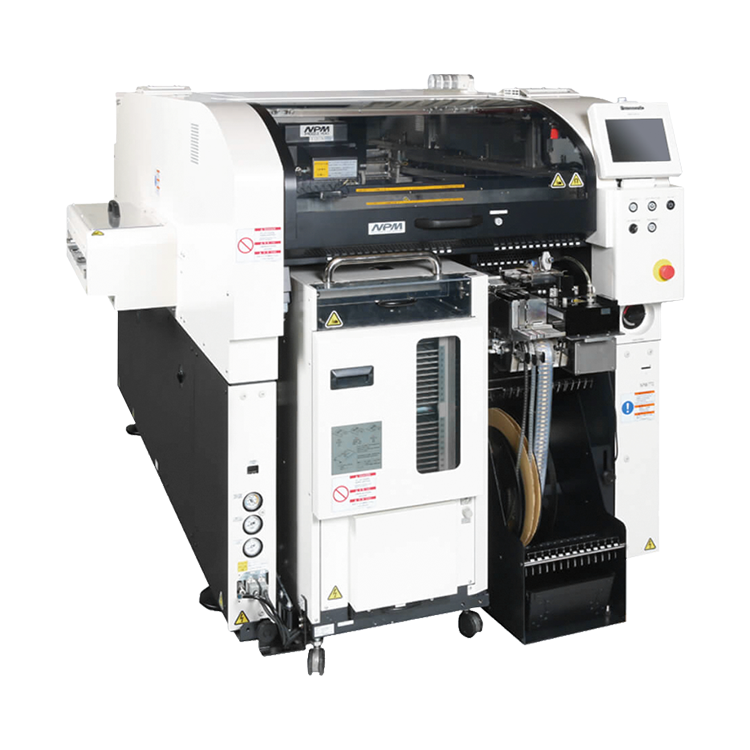

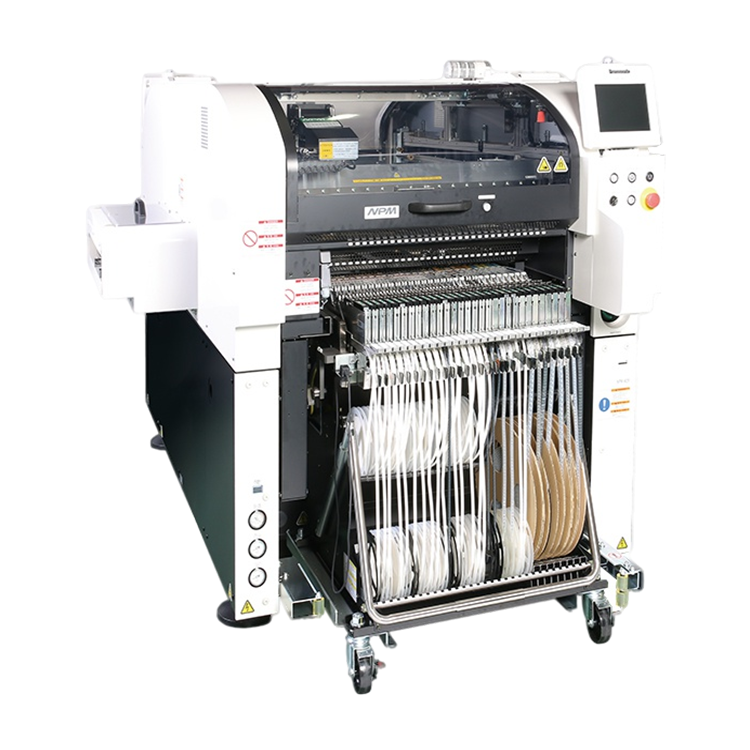

* NPM-W2: This modular mounter amplifies the capabilities of the original NPM-W, offering a 10% throughput boost and 25% more accuracy. It handles boards up to 750 x 550mm (or 1200mm long PCB optionally) and can place components down to 03015mm microchips[2][4]. It boasts a lightweight 16-nozzle head for a throughput of up to 77,000 CPH[2][4][7].
* CM602: This machine offers a placement speed of 75,000 cph (0.048 s / chip) and can handle component sizes from 0402 chips up to L 32 mm × W 32 mm × T 8.5 mm[1].
* AM100: A scalable single gantry hybrid drive platform with a 14-spindle ultra high flex head. It has a throughput of 35,800 CPH (ideal) or 22,000 CPH (IPC9850)[5].
* NPM-D3: A compact, dual-beam chip mounter with a reinforced frame and advanced head[6].
* High Throughput: Machines like the NPM-W2 and CM602 offer high placement speeds, maximizing production output[1][2][4].
* High Accuracy: Panasonic mounters provide precise component placement, ensuring reliable solder joints and minimizing defects[1][2][4].
* Component Flexibility: Many models can handle a wide range of component sizes, from microchips to large connectors[1][4].
* Board Size Flexibility: The NPM series can accommodate various board sizes, including large PCBs[2][4].
* Modular and Scalable: The modular design of the NPM series allows for easy configuration and expansion to meet changing production needs[2][6].
Before investing in a Panasonic chip mounter, carefully consider the following factors:
* Production Volume: Evaluate your current and projected production needs to determine the required throughput.
* Component Range: Ensure the machine can handle the range of component sizes and types you use.
* Board Size: Verify that the machine can accommodate your PCB dimensions.
* Placement Accuracy: Determine the required placement accuracy for your applications.
* Budget: Establish a budget that includes the initial investment, installation, training, and maintenance costs.
* Integration: Consider how well the machine will integrate with your existing SMT line and data management systems.
* Service and Support: Assess the manufacturer's service and support offerings, including installation, training, and technical assistance.
While Panasonic manufactures the equipment, you'll likely work with a supplier or distributor for sales, integration, and support. When choosing a Panasonic chip mounter manufacturer or supplier, consider:
* Experience: Look for a company with extensive experience in the SMT industry and a proven track record working with Panasonic equipment.
* Expertise: Ensure they have the technical expertise to support your specific needs.
* Service and Support: Confirm they offer comprehensive service and support, including installation, training, and ongoing technical assistance.
* Customer Reviews: Check their reputation and customer reviews.
The cost of a Panasonic chip mounter varies depending on the model, configuration, and optional features. A thorough cost analysis is essential to determine if the investment is justified. Consider the following factors:
1. Initial Investment: The purchase price of the machine.
2. Installation Costs: Expenses related to setting up the machine.
3. Training Costs: The cost of training personnel to operate the machine.
4. Operating Costs: Ongoing expenses such as labor, materials, and energy.
5. Maintenance Costs: Costs for regular maintenance and repairs.
Compare these costs with the potential benefits, such as increased production, reduced labor, and improved quality, to determine the Return on Investment (ROI).
Panasonic chip mounters offer advanced solutions for PCB assembly, known for their high speed, accuracy, and flexibility. However, deciding if they are the best choice for your SMT line requires careful consideration of your specific needs, budget, and production goals. Evaluating Panasonic's offerings, considering the factors outlined above, and comparing with alternatives will help you make an informed decision.
A: High throughput, high accuracy, component flexibility, and modular design.
A: ±25μm Cpk ≥ 1.0 for chip components.
A: Up to 77,000 CPH with the lightweight 16-nozzle head.
A: Production volume, component range, board size, placement accuracy, budget, integration, and service/support.
A: Work with reputable suppliers or distributors with experience working with Panasonic equipment, and check their reputation and customer reviews.
