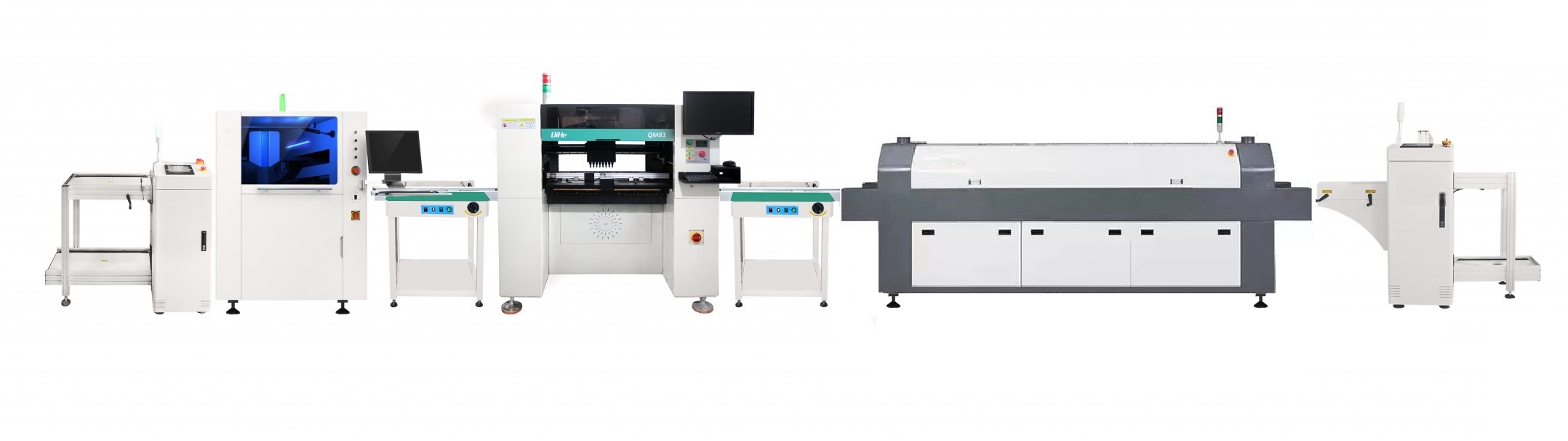

The most obvious part of the SMT line cost is the hardware itself. A typical SMT line consists of several key pieces of equipment, each contributing to the overall investment. Here's a breakdown:
The solder paste printer is the first step in the SMT process. It applies solder paste to the PCB, ensuring the correct amount of solder is placed precisely on the pads[8].
* Cost Factors: Manual printers are the most affordable, while fully automated printers offer higher precision and speed but come at a higher price. Considerations include stencil size, printing speed, and alignment accuracy.
* Price Range: Manual printers can start around \$5,000, while automated printers can range from \$20,000 to \$100,000 or more[2].
[Insert Image: A close-up of a solder paste printer in operation, showing the stencil and the squeegee applying solder paste to a PCB.]
The pick and place machine is arguably the most critical and expensive component of the SMT line[5]. It picks components from feeders and accurately places them onto the PCB[8].
* Cost Factors: Speed (components per hour or CPH), accuracy, the number of feeders, component size range, and vision system capabilities all impact the price. Chip shooters are designed for high-speed placement of small components, while multi-function machines can handle a wider range of component sizes and types[4].
* Price Range: Mid-range pick and place machines (12,000-35,000 CPH) can cost \$100,000 to \$200,000, while high-speed machines (100,000+ CPH) can reach \$700,000 or more[5]. Complete SMT lines can range from \$500,000 for a basic setup to \$5 million or more for a high-end line[4].
* Pick & place machines account for about 60-70% of the entire SMT line cost[5].
The reflow oven heats the PCB assembly to melt the solder paste, creating permanent solder joints between the components and the board[8].
* Cost Factors: Oven size, heating zones, temperature control accuracy, and nitrogen atmosphere capabilities influence the price. Nitrogen reflow ovens can improve solder joint quality but add to the cost.
* Price Range: Reflow ovens typically range from \$20,000 to \$150,000, depending on size and features.
[Insert Image: A reflow oven with a glass panel, showing the PCBs moving through the different heating zones.]
Automated Optical Inspection (AOI) and X-ray inspection systems are crucial for detecting defects in solder joints and component placement[8].
* Cost Factors: Resolution, speed, and the types of defects that can be detected impact the price. 3D AOI systems offer more comprehensive inspection capabilities.
* Price Range: AOI systems can range from \$30,000 to \$200,000 or more. X-ray inspection systems are generally more expensive, starting around \$100,000.
Conveyors move PCBs between different machines in the SMT line, ensuring a smooth and continuous flow of production[4]. Loaders and unloaders automate the process of loading and unloading PCBs from the line[8].
* Cost Factors: Length, speed, and automation level influence the price.
* Price Range: Conveyors and handling equipment can range from \$5,000 to \$50,000 or more, depending on the complexity of the line.
SMT lines require sophisticated software for programming, monitoring, and controlling the equipment.
* Cost Factors: The features and capabilities of the software, as well as licensing fees, impact the cost.
* Price Range: Software costs can vary widely, from a few thousand dollars to tens of thousands of dollars per year.
* Cost Factors: Workshop and environment costs are important[2]. Setting up an SMT line requires a suitable facility with adequate power, ventilation, and environmental controls[2]. Cleanroom environments may be necessary for high-reliability applications.
* Price Range: These costs can vary significantly depending on the existing infrastructure and the specific requirements of the SMT line.
Beyond the initial investment, several ongoing operational expenses contribute to the total SMT line cost.
* Cost Factors: Skilled technicians are needed to operate, maintain, and troubleshoot the SMT line[2]. Labor costs vary depending on location and the level of expertise required.
* Minimizing Costs: Automation can help reduce labor costs, but skilled personnel are still essential for managing the line and ensuring quality.
* Cost Factors: The cost of solder paste, components, and other materials can fluctuate depending on market conditions and supplier relationships.
* Minimizing Costs: Building strong relationships with suppliers can lead to cost savings through bulk purchasing and negotiated discounts[1].
* Cost Factors: Regular maintenance is essential to prevent downtime and ensure the longevity of the equipment. Repair costs can be significant if equipment breaks down.
* Minimizing Costs: Implementing a preventative maintenance program and investing in high-quality equipment can help reduce maintenance and repair costs.
* Cost Factors: SMT equipment consumes a significant amount of energy.
* Minimizing Costs: Energy-efficient equipment and optimized operating procedures can help reduce energy consumption.
* Cost Factors: SMT stencils, pick and place nozzles, and other consumables need to be replaced regularly.
* Minimizing Costs: Using durable stencils and properly maintaining nozzles can help extend their lifespan.
* Cost Factors: Defects in solder joints or component placement can lead to rework or scrap, adding to the overall cost.
* Minimizing Costs: Investing in quality inspection equipment and implementing robust process controls can help reduce rework and scrap.
Several hidden costs can impact the total SMT line cost.
* Cost Factors: Training personnel to operate and maintain the SMT line requires time and resources.
* Mitigation: Comprehensive training programs are essential to ensure that personnel can effectively manage the line.
* Cost Factors: Equipment downtime can disrupt production and lead to lost revenue.
* Mitigation: Preventative maintenance and quick response times for repairs can help minimize downtime.
* Cost Factors: Inefficient inventory management can lead to shortages or excess inventory, both of which can add to the cost.
* Mitigation: Implementing a robust inventory management system can help optimize inventory levels.
* Cost Factors: SMT equipment can become obsolete over time as technology advances.
* Mitigation: Planning for upgrades and replacements can help mitigate the risk of obsolescence.
* Cost Factors: Investing in an SMT line means foregoing other potential investments.
* Mitigation: Carefully evaluating the potential return on investment is essential before making a decision.
Several strategies can help optimize your SMT line investment and reduce the total cost of ownership[1].
* Explanation: Implementing lean manufacturing principles can help streamline workflows, reduce setup times, and minimize waste[1].
* Example: Using SMED (Single-Minute Exchange of Die) techniques to reduce setup times can lead to significant cost savings[7].
* Explanation: Automating processes such as component placement and inspection can increase efficiency and reduce labor costs[1].
* Example: Using automated optical inspection (AOI) systems can quickly detect defects, reducing the need for manual inspection.
* Explanation: Designing PCBs with manufacturability in mind can reduce assembly costs and improve quality.
* Example: Choosing standard component sizes and avoiding tightly spaced components can simplify the assembly process[3].
* Explanation: Sourcing components and equipment from reliable suppliers at competitive prices can help reduce costs[1].
* Example: Negotiating bulk discounts with suppliers can lead to significant savings.
* Explanation: Continuously monitoring and improving the SMT line processes can lead to ongoing cost savings and efficiency gains[1].
* Example: Using data analytics to identify bottlenecks and optimize production flow.
Choosing the right SMT line cost manufacturer is a critical decision that can significantly impact your investment[1]. Here are some factors to consider:
* Experience and Expertise: Look for a manufacturer with a proven track record of providing high-quality equipment and services.
* Product Range: Choose a manufacturer that offers a wide range of equipment to meet your specific needs.
* Customization Options: Some manufacturers offer customization options to tailor the SMT line to your specific requirements.
* Service and Support: Ensure that the manufacturer provides excellent service and support, including installation, training, and maintenance.
* Price and Value: Compare prices from different manufacturers, but don't sacrifice quality for cost.
* References and Reviews: Check references and reviews from other customers to get an idea of the manufacturer's reputation.
[Insert Placeholder for Case Study 1: A brief case study highlighting how a company reduced their SMT line cost by implementing lean manufacturing principles.]
[Insert Placeholder for Case Study 2: A brief case study showcasing how a company optimized their SMT line investment by choosing the right equipment and supplier.]
[Insert Placeholder for Case Study 3: A brief case study about optimizing SMD placement]
The SMT industry is constantly evolving, with new technologies and innovations emerging all the time. Industry 4.0 technologies, such as IoT and data analytics, are becoming increasingly important for optimizing production and reducing costs[1]. Staying ahead of the curve with advanced technology and best practices will be key to maintaining a competitive edge[1].
A: A basic SMT line can range from \$100,000 to \$200,000 or more, depending on the equipment and features[8]. However, a complete SMT patch production line in China can cost around 400,000 yuan for the machine configuration[2].
A: The pick and place machine is typically the most expensive component, accounting for 60-70% of the entire SMT line cost[5]. Large pick & place machines with high capacity can cost around $700,000[5].
A: Several strategies can help reduce SMT assembly costs, including lean manufacturing, automation, design for manufacturability, and strategic sourcing[1][3]. Choosing cost-effective SMT components and using standard package sizes can also lead to savings[3].
A: Hidden costs can include training, downtime, inventory management, obsolescence, and opportunity cost.
A: Consider the manufacturer's experience, product range, customization options, service and support, price, and references.
A: To reduce PCB assembly cost, select components with standard sizes, adhere to DFA guidelines and perform a cost-benefit analysis[3]. Employ SMDs for rapid and precise component placement[3].
[Insert Image: A final image summarizing the key takeaways from the article.]
Investing in an SMT line is a significant decision that requires careful planning and consideration. By understanding the various cost factors, implementing effective optimization strategies, and choosing the right SMT line manufacturer, you can maximize your return on investment and ensure a successful future for your electronics manufacturing business.
