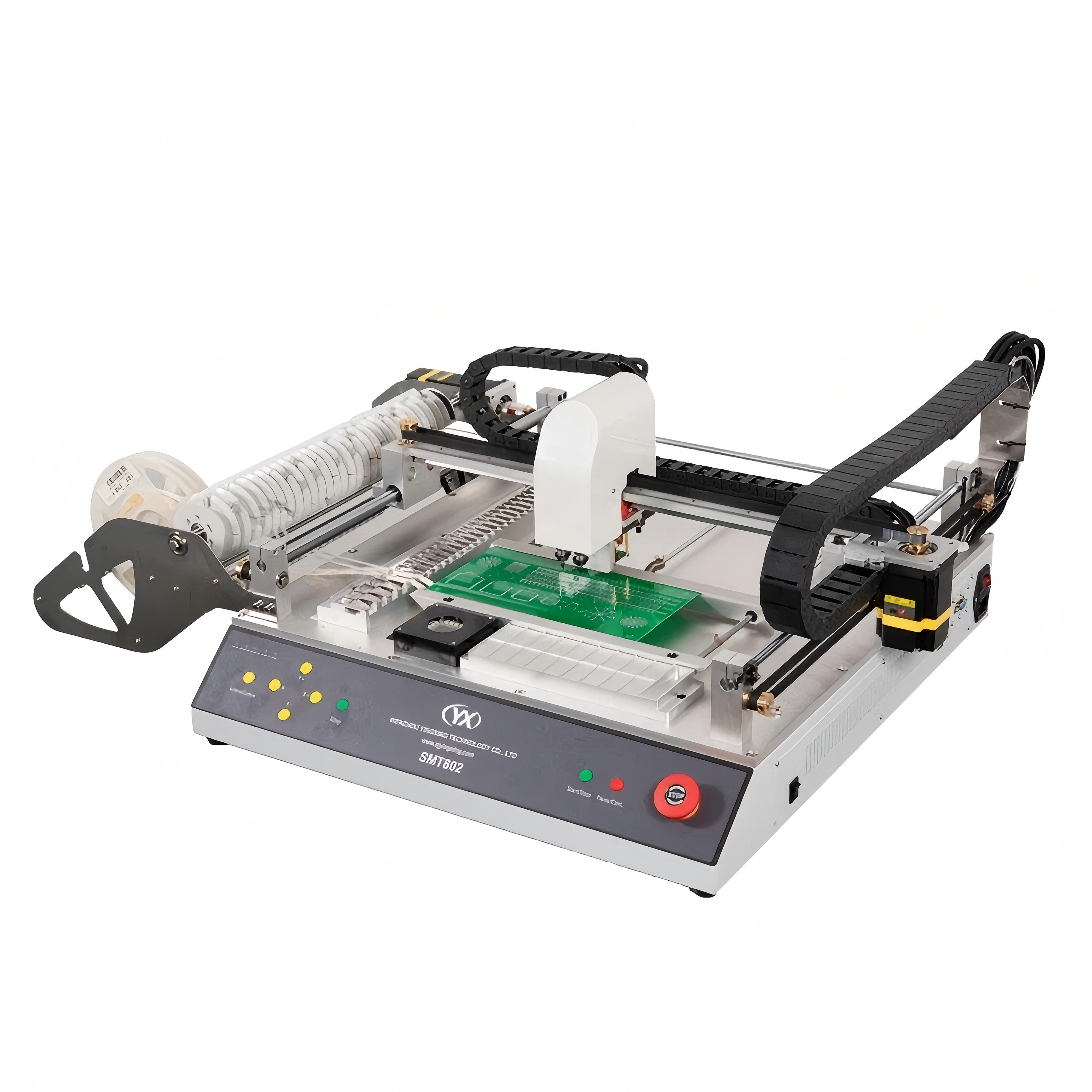

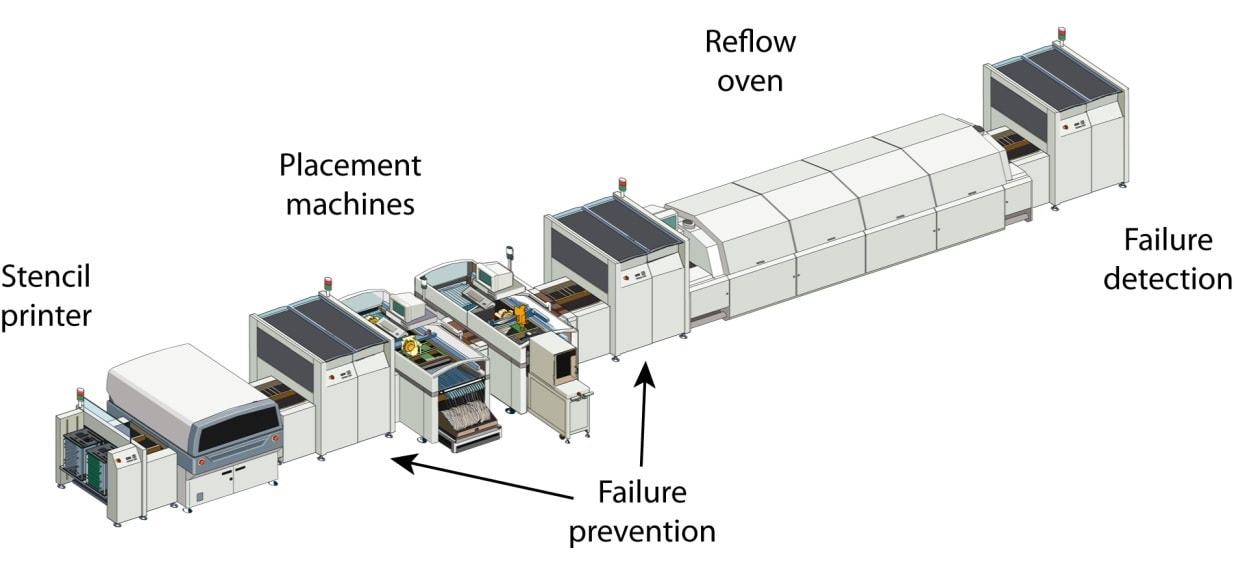

SMT Feeders are devices designed to precisely deliver electronic components to the pick-and-place machine in an SMT assembly line[3]. These feeders hold components, typically packaged on reels, in tubes (sticks), or in trays, and advance them to a designated pick-up point where the placement head can reliably grab and position them onto the printed circuit board (PCB)[3]. The primary function of the feeder is to ensure that the placement machine can rapidly and accurately place components on the board, thus optimizing the manufacturing process[3].
In the SMT process, feeders directly influence:
* Placement Accuracy: Precise component delivery minimizes placement errors[3].
* Production Speed: Fast and reliable feeding mechanisms increase throughput[3].
* Component Range: Different feeder types accommodate various component sizes and shapes[3].
* Overall Efficiency: Proper feeder maintenance reduces downtime and material waste[3].
* Automation: Automation in the electronic assembly process greatly improves efficiency and reduces production time[3].
SMT Feeders come in various designs to accommodate different component packaging and production needs[1].
Tape feeders are the most commonly used type, designed for components supplied on tape and reel[1]. The tape advances, presenting each component for pickup.
* Paper Tape Feeders: These feeders have a needle[7].
* Plastic Tape Feeders: These feeders do not have a needle, but only a belt guide[7].
* Standard Tape Feeders: Accommodate common tape widths like 8mm, 12mm, 16mm, and 24mm[1]. The basic width of the tape material has 8mm, 12mm, 16mm, 24mm, 32mm, 44mm and 52mm and other types[1].
* High-Speed Tape Feeders: Designed for faster indexing and component presentation.
* Electric Tape Feeders: High-precision electric type feeders offer higher transmission accuracy, faster feeding speed, more compact structure, and more stable performance[1].
Tray feeders hold components in matrix trays, often used for larger or irregularly shaped components, such as IC integrated circuit components[1][5].
* Single-Layer Tray Feeders: Directly mounted on the surface mounter feeder frame, taking up more than one bad position, applicable to the tray type material is not much[1].
* Multi-Layer Tray Feeders: Feature multi-layer automatic transfer tray, occupies little space, compact structure, suitable for tray material is more of the case[1][5]. Multi-layer tray type feeder has multi-layer automatic transfer tray and a compact structure[5].
* Platform Tray Feeders (PTF) and Direct Platform Tray Feeders (DPTF): These save space on the feeder rack[5].
Stick feeders are used for components packaged in tubes or sticks[1]. A mechanism, often a vibrating feeder, pushes the components forward for pickup[1]. They have good protection of component pins[1].
Bulk feeders are designed for small, discrete components that are not pre-packaged[1]. Components are freely loaded into the molded plastic box or bag, through the use of vibratory feeder or feeder tube components in turn into the mounter[1]. Vibration feeder is more expensive[1].
* High Precision: Accurate component positioning ensures minimal placement errors[3].
* Fast Indexing: Rapid tape or component advancement maximizes throughput[3].
* Jam Detection: Sensors identify and alert operators to feeder jams.
* Automatic Setup: Quick and easy feeder setup reduces changeover times.
* Data Tracking: Feeders can track component usage and provide inventory data.
* Adjustability: Allows for easy adjustment to accommodate different component types and sizes.
* Versatility: Accommodate various component sizes and shapes[3].
Choosing the right SMT feeder depends on several factors related to your SMT production requirements[7].
* Tape Width: Select feeders that match the tape width of your components (e.g., 8mm, 12mm, 16mm)[1][7].
* Component Shape: Consider whether components are rectangular, cylindrical, or irregularly shaped[1].
* Packaging Type: Determine whether components come in tape, sticks, trays, or bulk[1][7].
* High-Speed Feeders: Opt for high-speed tape feeders if you need to maximize throughput[1].
* Multi-Tray Feeders: Use multi-tray feeders to reduce the frequency of tray changes[1].
* Automated Feeders: Consider automated feeders to minimize manual intervention[3].
* Placement Machines: Ensure that the feeders are compatible with your specific SMT placement machine model[7].
* Feeder Interfaces: Check that the feeders have the correct interface for communication and control[7].
* High-speed veneer feeder: Without catheter[7].
* Universal veneer feeder: With catheter[7].
* Electric veneer veneer feeder[7].
* Cost-Effective Feeders: Balance performance requirements with budget constraints[7].
* Used Feeders: Consider purchasing used or refurbished feeders from reputable suppliers.
Proper maintenance is essential to keep SMT Feeders operating smoothly and reliably[4].
* Dust and Debris: Clean feeders regularly to remove dust, debris, and adhesive residue[4].
* Cleaning Solutions: Use approved cleaning solutions that won't damage feeder components[4].
* Worn Parts: Inspect feeders for worn or damaged parts, such as springs, gears, and sensors[4].
* Replacement: Replace worn parts promptly to prevent feeder malfunctions[4].
* Proper Adjustment: Adjust the feeder settings to ensure optimal component presentation[4].
* Calibration: Calibrate feeders to ensure accurate component positioning[4].
* Feeder Jams: Clear any jammed components or tape[2][4].
* Skipped Components: Check tape tension and feeder alignment[2].
* Misfeeds: Inspect feeder mechanisms for wear or damage[2].
* Do not roll tape: It is mainly due to the slip of the unidirectional bearing inside the large roll pulley[4].
* Feeder Floating height: Lead to the material position deviation and alarm[4].
* Feeder does not feed: The small spring on the actuator falls off or breaks, and the gear gets stuck[4].
* The feeding is not in place: There may be material residue inside the gland or insufficient gland pressure[4].
When sourcing SMT feeders, consider these reputable manufacturers:
* Neoden: Provides a full SMT assembly line solutions[7].
* Zhejiang NeoDen Technology Co., Ltd: A provider of SMT assembly solutions[7].
The future of SMT feeders is likely to be shaped by several trends.
* Smart Feeders: Integration of sensors, data analytics, and AI to optimize feeder performance and predict maintenance needs.
* Flexible Feeders: Development of feeders that can handle a wider range of component sizes and packaging types.
* Miniaturization: Design of smaller and more compact feeders to accommodate increasing PCB density.
* Wireless Communication: Use of wireless technology to enable remote monitoring and control of feeders.
* Sustainable Design: Focus on using eco-friendly materials and energy-efficient designs.
SMT Feeders are indispensable components of modern SMT assembly lines[3]. Understanding the different types of feeders, their key features, how to select the right ones, and how to maintain them is essential for optimizing your production process[3]. By partnering with reputable SMT feeders manufacturer and staying abreast of the latest technology trends, you can ensure that your SMT line operates at peak efficiency and delivers high-quality electronic products[3].
The primary function of SMT Feeders is to hold and supply small electronic components for placement on the printed circuit board (PCB)[3].
The main types of SMT Feeders are tape feeders, tray feeders, stick feeders, and bulk feeders[1].
Consider the component size and packaging, production volume and speed, machine compatibility, and budget when selecting an SMT Feeder[7].
Common problems include feeder jams, skipped components, misfeeds, and issues with tape rolling or feeder height[2][4].
Key maintenance practices include regular cleaning, inspection for worn parts, and proper adjustment and calibration[4].
