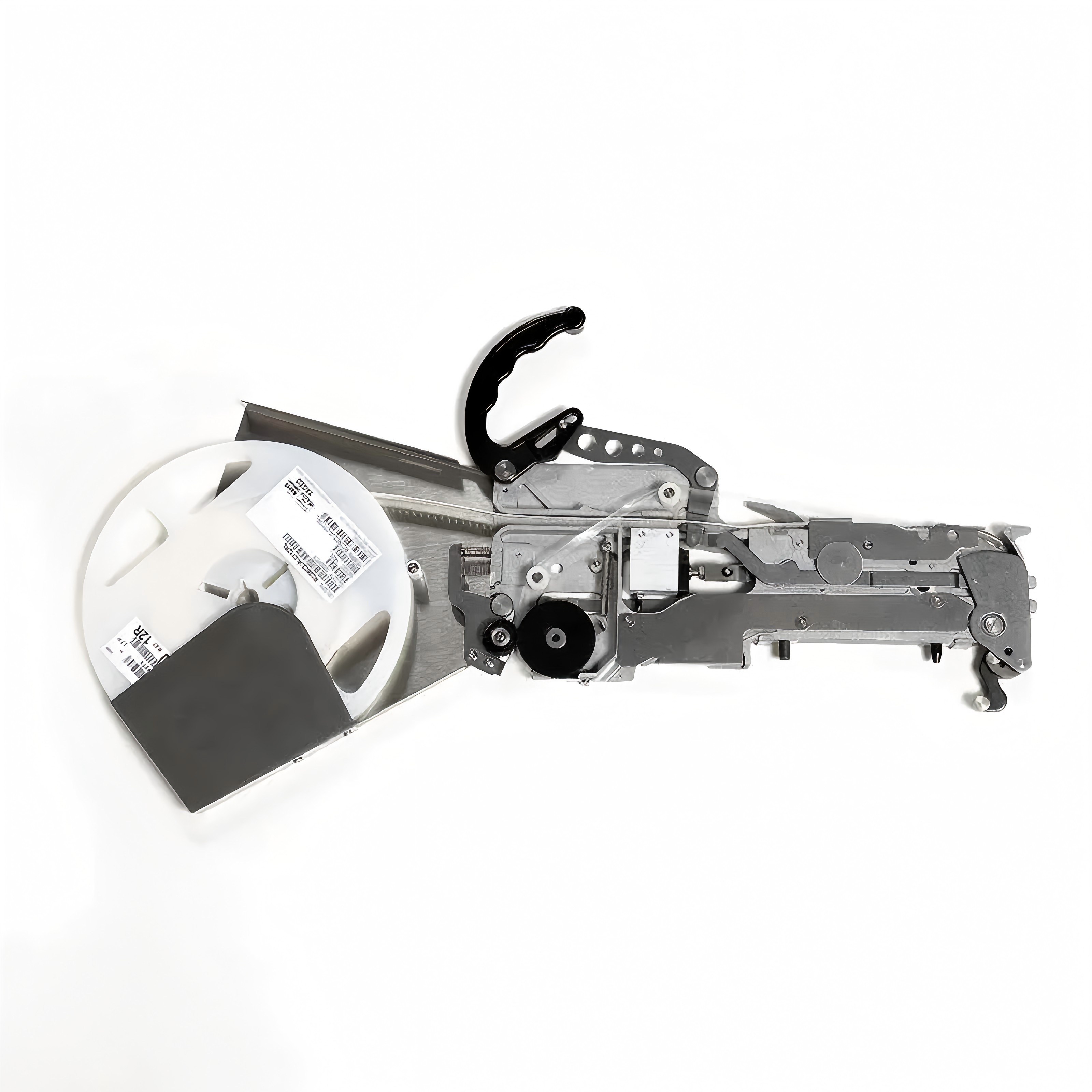

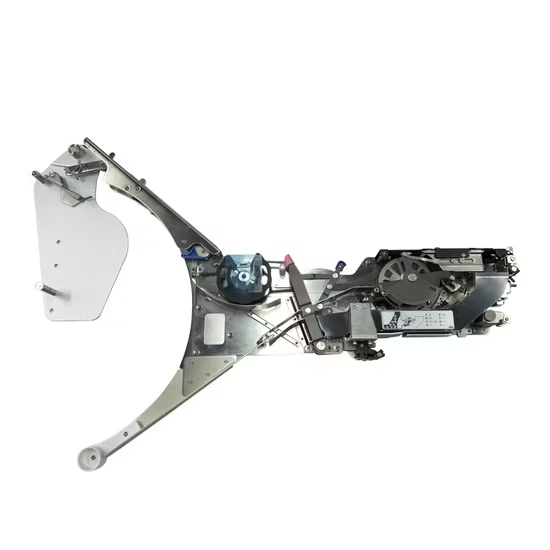

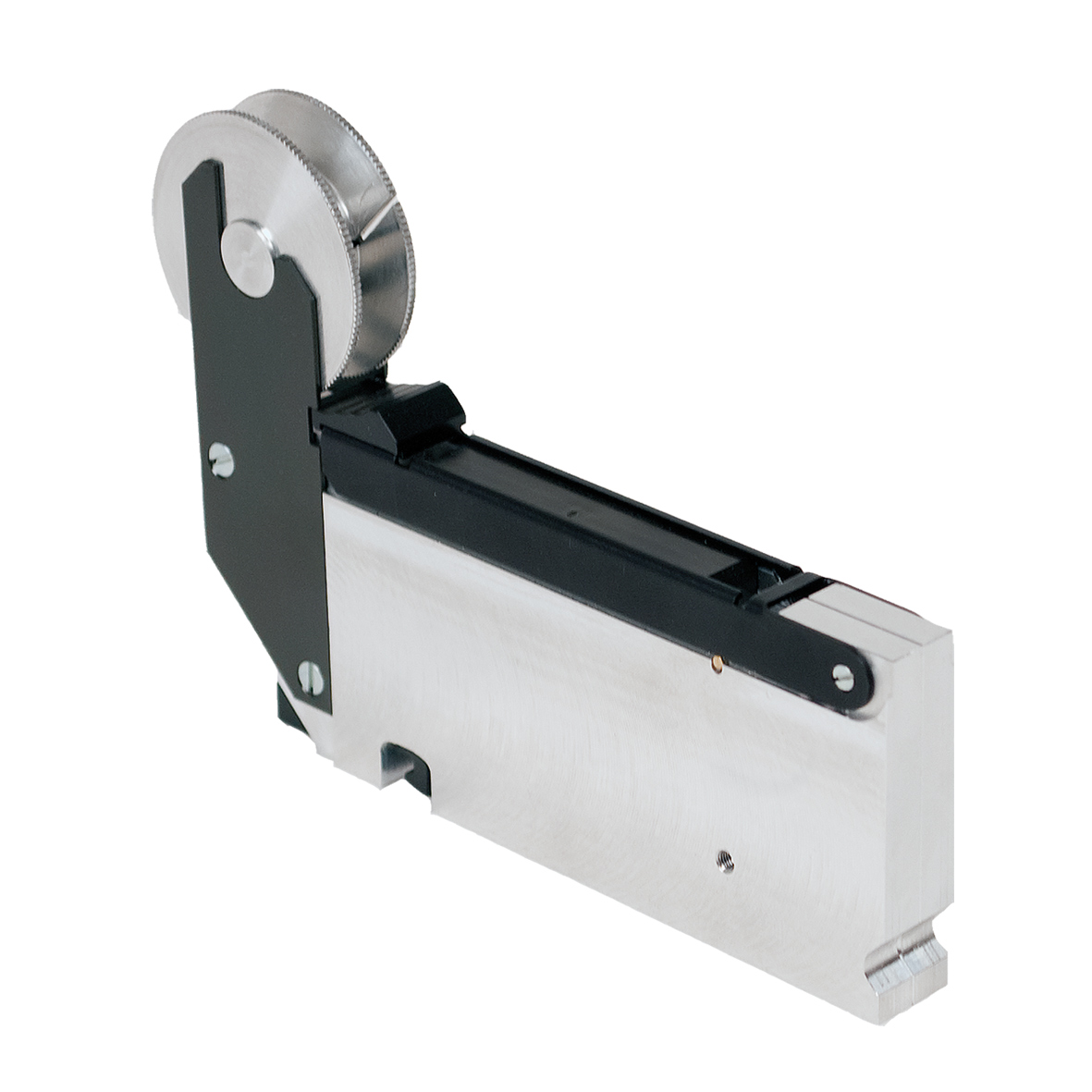

SMT tape feeders are electromechanical devices that hold and advance reels of electronic components packaged in carrier tape. They present these components, one by one, to the pick-and-place machine, which then removes the component from the tape and places it onto the PCB. The feeder's primary function is to ensure a consistent and reliable supply of components, enabling continuous and efficient assembly.
* Automated Component Delivery: SMT tape feeders automate the process of delivering components to the pick-and-place machine, eliminating manual handling and reducing the risk of errors.
* High-Speed Operation: Designed for high-speed assembly lines, tape feeders can deliver components at rates of thousands per hour.
* Versatility: SMT tape feeders can accommodate a wide range of component sizes and shapes, from tiny resistors and capacitors to large integrated circuits.
* Precision and Accuracy: Accurate component presentation is crucial for proper placement on the PCB, and SMT tape feeders are designed to deliver components with exceptional precision.
* Reduced Downtime: Reliable feeders minimize component misfeeds and jams, reducing downtime and maximizing production throughput.
* Compatibility: SMT tape feeders are designed to be compatible with various pick-and-place machines and SMT assembly lines.
SMT tape feeders come in various designs, each suited for specific component types, tape formats, and production requirements:
* Mechanical Feeders: These are the most common type of tape feeder, using a mechanical mechanism to advance the tape and peel off the cover tape. They are generally reliable and cost-effective.
* Electric Feeders: Electric feeders use a motor to drive the tape advance mechanism, offering more precise control and higher speeds compared to mechanical feeders[5]. They often include features like automatic component pitch adjustment and error detection.
* Pneumatic Feeders: Pneumatic feeders use compressed air to advance the tape. They are often used for larger or heavier components[4].
* Smart Feeders: These advanced feeders incorporate sensors and control circuitry for real-time monitoring and adjustment of the feeding process.
* Tape less Feeders: These feeders offer component feeding without the use of tape.
* Auto Setting Feeders: Automates the process of setting new tape parts, reduces approximately 60 seconds including pre-processing[6].
A typical SMT tape feeder consists of the following key components:
* Tape Reel Holder: Holds the reel of component tape.
* Tape Advance Mechanism: Advances the tape forward, one pitch at a time.
* Cover Tape Peeler: Peels off the cover tape, exposing the component.
* Component Presentation Area: Presents the component to the pick-and-place machine.
* Waste Tape Spool: Collects the used cover tape.
* Sensors: Detect component presence, tape jams, and other errors.
* Control Circuitry: Controls the operation of the feeder and communicates with the pick-and-place machine.
The operation of an SMT tape feeder involves a precise sequence of steps:
1. Tape Loading: The reel of component tape is loaded onto the tape reel holder.
2. Tape Threading: The tape is threaded through the tape advance mechanism and the cover tape peeler.
3. Tape Advancement: The tape advance mechanism advances the tape forward by one pitch, exposing the next component.
4. Cover Tape Removal: The cover tape peeler removes the cover tape, exposing the component.
5. Component Presentation: The component is presented to the pick-and-place machine at the component presentation area.
6. Component Pickup: The pick-and-place machine picks up the component using a vacuum nozzle or other gripping mechanism.
7. Waste Tape Collection: The used cover tape is collected on the waste tape spool.
8. Error Detection: Sensors monitor the feeding process for errors, such as tape jams or component misfeeds. If an error is detected, the feeder stops and signals the pick-and-place machine.
Choosing the appropriate SMT tape feeder for a specific application requires careful consideration of several factors:
* Component Size and Shape: The feeder must be able to accommodate the size and shape of the components being used.
* Tape Format: The feeder must be compatible with the tape format (width, pitch, etc.) used for the components.
* Feed Rate: The feeder must be able to deliver components at the required feed rate to meet production demands.
* Accuracy and Reliability: The feeder must be accurate and reliable to ensure proper component placement and minimize downtime.
* Ease of Use and Maintenance: The feeder should be easy to use and maintain, with simple tape loading and adjustment procedures.
* Compatibility with Pick-and-Place Machine: The feeder must be compatible with the pick-and-place machine being used.
* Cost: The cost of the feeder should be balanced against its performance and features.
* Tape Splicing Capability: Some feeders have tape splicing capability[8].
A dependable SMT feeder is paramount for achieving optimal results in SMT assembly[4]:
* Efficiency and Speed: A well-functioning feeder ensures a steady flow of components, minimizing downtime and maximizing production speed[4].
* Placement Accuracy: Precise feeder operation is crucial for accurate component placement on the PCB. This minimizes errors and ensures proper circuit functionality[4].
* Reduced Waste: Reliable feeders minimize component damage or misfeeds, leading to less wasted materials and improved production costs[4].
Collaborating with a reputable SMT tape feeder manufacturer is essential for ensuring the success of your SMT assembly operations. A good manufacturer can offer:
* Feeder Selection Assistance: Expertise in recommending the appropriate feeders for specific applications.
* Customization: Ability to customize feeders to meet unique requirements.
* Training and Support: Training on feeder operation and maintenance.
* Repair and Maintenance Services: Repair and maintenance services to keep feeders in optimal condition.
* Spare Parts: Readily available spare parts to minimize downtime.
* Experience and Expertise: Look for a manufacturer with a proven track record in SMT tape feeder design and manufacturing.
* Technical Capabilities: Ensure the manufacturer has the necessary equipment and expertise to meet your specific requirements.
* Quality Certifications: Check for certifications such as ISO 9001 to ensure quality management.
* Customer Support: Choose a manufacturer that provides excellent customer support and technical assistance.
As SMT technology continues to advance, SMT tape feeders will evolve to meet the changing demands of the industry. Future trends in SMT tape feeder technology include:
* Increased Automation: Greater automation of feeder setup and adjustment procedures.
* Smart Feeder Technology: Increased use of sensors and control circuitry for real-time monitoring and adjustment of the feeding process.
* Miniaturization: Further reduction in feeder size to accommodate smaller components and denser PCB layouts.
* Improved Reliability: Enhanced feeder designs to minimize downtime and improve overall reliability.
* Flexibility: Feeders will be more flexible, being able to handle more components and component sizes with minimal downtime.
PPM offers a new 8mm feeder with 2mm indexing and improved indexing and repeatability that reduces or eliminates mispicks[7].
Automates the process of setting new tape parts, reduces approximately 60 seconds including pre-processing[6]. Realized automatic loading of next parts by optional Loading Unit[6].
SMT tape feeders are essential components of modern PCB assembly lines, playing a critical role in ensuring the efficient and reliable placement of electronic components. By understanding the different types of feeders available, the factors to consider when selecting a feeder, and the importance of working with a reputable SMT tape feeder manufacturer, electronics manufacturers can optimize their SMT assembly processes and achieve exceptional results. While they may not be the most glamorous part of the SMT line, SMT tape feeders are undoubtedly the unsung heroes of PCB assembly.
A: Mechanical feeders are the most common type, offering a balance of reliability and cost-effectiveness.
A: The tape width should match the size of the components being used. Common tape widths include 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm and 72mm[1].
A: Electric feeders offer more precise control, higher speeds, and often include features like automatic component pitch adjustment and error detection[5].
A: Regular maintenance, proper tape loading, and using high-quality feeders can help minimize downtime.
A: An SMT tape feeder manufacturer designs, manufactures, and supplies SMT tape feeders to electronics manufacturers. They also provide technical support and services.
A: Stick Feeders hold components in a linear stick format, enabling efficient feeding of small, high-volume components[3]. Stick feeders are ideal for compact designs and can be quickly loaded and unloaded during production changes[3].
A: Tape feeders use continuous reels of carrier tape to hold components securely[3]. They are versatile and support a wide range of component sizes, making them suitable for both small and medium-sized productions[3]. Tape feeders are known for their reliability and ease of integration into automated assembly lines[3].
