Surface Mount Technology (SMT) has revolutionized the electronics industry, allowing for smaller, more compact devices with improved performance. One crucial aspect of SMT assembly is the application of solder paste to the PCB pads, which is where DIY SMT stencils come into play. This comprehensive guide will walk you through the process of using a DIY SMT stencil for PCB assembly, providing valuable insights and tips to help you achieve professional-quality results.
DIY SMT stencils are thin sheets of material, typically made from stainless steel or polyimide (Kapton), with precisely cut openings that correspond to the solder pads on your PCB[1]. These stencils allow for accurate and consistent application of solder paste, which is essential for successful SMT assembly.
1. Precision: DIY SMT stencils ensure precise deposition of solder paste on PCB pads, minimizing the risk of solder bridging and improving overall joint quality[8].
2. Efficiency: Stencils enable simultaneous application of solder paste across multiple pads, significantly reducing assembly time and increasing production throughput[8].
3. Cost-effectiveness: Creating your own DIY SMT stencils can be more economical than purchasing commercial alternatives, especially for small-scale or prototype projects.
4. Customization: DIY stencils allow for easy customization to match specific PCB designs and requirements.
Before diving into the stencil-making process, it's essential to gather the necessary materials and tools:
- Kapton film (2 mil thick, 1 ft square sheets recommended)[4]
- Laser cutter
- PCB layout software (e.g., EagleCAD)
- Gerber viewer software (e.g., Pentalogix ViewMate)
- PDF creator software
- Solder paste (e.g., Kester No-Clean)
- Putty knife or squeegee
- Isopropyl alcohol and lint-free cloth for cleaning
1. Use your PCB layout software to create or export the Cream Layer (solder paste layer) in Gerber RS274x format[4].
2. Export the Dimension layer (PCB outline) to aid in registration[4].
1. Import the Gerber files into your Gerber viewer software.
2. Adjust the aperture sizes and shapes as needed for optimal solder paste deposition.
3. Create a PDF file of the stencil design.
1. Load the Kapton film into your laser cutter.
2. Import the PDF file and adjust settings for optimal cutting.
3. Carefully cut the stencil, ensuring all apertures are clean and precise.
Now that you have your DIY SMT stencil, it's time to put it to use in your PCB assembly process.
1. Clean your work area thoroughly to prevent contamination.
2. Gather all necessary tools and materials, including your PCB, solder paste, and squeegee.
1. Create a frame using spare PCBs to hold your target PCB in place[1].
2. Carefully position the stencil on top of the target PCB, aligning the apertures with the solder pads[1].
3. Use tape to secure one edge of the stencil, allowing for easy lifting and repositioning[1].
1. Prepare your solder paste according to the manufacturer's instructions.
2. Apply a small amount of solder paste to one end of the stencil.
3. Using a putty knife or squeegee, spread the solder paste across the stencil at a 45-degree angle with consistent pressure[1][5].
4. Make multiple passes to ensure all apertures are filled with solder paste.
1. Carefully lift the stencil from the taped edge, maintaining a consistent angle.
2. Inspect the PCB to ensure solder paste has been deposited on all pads correctly.
1. Using tweezers, carefully place SMT components onto the solder paste deposits[5].
2. Don't worry about perfect alignment, as surface tension during reflow will help center components[5].
1. Use a reflow oven or hot air station to heat the PCB and melt the solder paste.
2. Follow the recommended temperature profile for your solder paste.

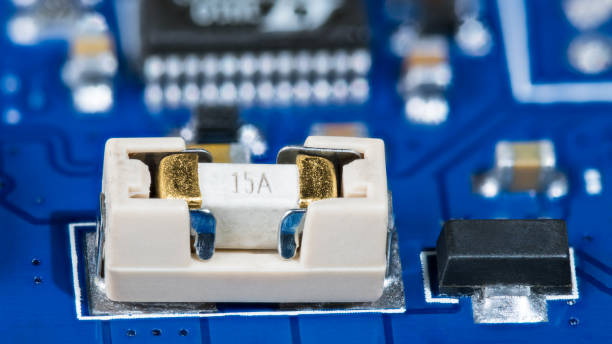

1. After reflow, allow the PCB to cool completely.
2. Inspect all solder joints for quality and consistency.
3. Clean any flux residue if necessary.
1. Stencil thickness: Choose a stencil thickness appropriate for your component sizes and pad designs[8].
2. Aperture design: Optimize aperture shapes and sizes for different component types to ensure proper solder paste volume[8].
3. Solder paste selection: Use high-quality solder paste that matches your PCB design and reflow profile[8].
4. Stencil cleaning: Clean your stencil thoroughly after each use to maintain its performance and longevity[9].
5. Practice: Start with simple designs and practice your technique before moving on to more complex PCBs.
If you experience solder bridging between pads, consider:
- Reducing the aperture size in your stencil design
- Adjusting the solder paste volume
- Checking for proper component placement
For components with insufficient solder:
- Increase the aperture size in your stencil design
- Ensure proper pressure when applying solder paste
- Check for stencil warping or damage
To address misaligned components:
- Improve your stencil alignment technique
- Use a stencil jig for consistent positioning[7]
- Ensure proper reflow temperature profile
When working with fine-pitch components:
- Use thinner stencils (e.g., 3-4 mil) for better paste release
- Consider stepped stencils for mixed component sizes
- Implement nano-coating on the stencil to improve paste release
For complex PCB designs:
- Explore multi-layer stencil techniques for varying paste thicknesses
- Use different aperture designs for specific component requirements
To improve stencil performance:
- Implement proper stencil tensioning techniques
- Consider using a stencil tensioning frame for consistent results
As electronics continue to evolve, so do the techniques for DIY SMT stencil creation and use:
1. 3D-printed stencils: Advancements in 3D printing technology may allow for more accessible and cost-effective stencil production.
2. Smart stencils: Integration of sensors and IoT technology could lead to stencils that provide real-time feedback on paste deposition quality.
3. Nano-coated materials: Development of new stencil materials with enhanced paste release properties.
4. AI-assisted design: Machine learning algorithms could optimize stencil designs based on historical data and component specifications.
When working with DIY SMT stencils and solder paste, it's important to consider environmental impact:
- Properly dispose of used solder paste and cleaning materials
- Recycle or repurpose old stencils when possible
- Choose lead-free solder pastes when appropriate
DIY SMT stencils offer a cost-effective and efficient solution for precise solder paste application in PCB assembly. By following the steps outlined in this guide and implementing best practices, you can achieve professional-quality results in your electronics projects. As technology continues to advance, the techniques and materials available for DIY SMT stencil creation and use will undoubtedly evolve, opening up new possibilities for hobbyists and small-scale manufacturers alike.
The ideal thickness for a DIY SMT stencil depends on the components you're using and the pad designs on your PCB. Generally, a thickness of 3-5 mil (0.076-0.127 mm) works well for most applications. Thinner stencils (3-4 mil) are better for fine-pitch components, while thicker stencils (5-6 mil) may be suitable for larger components or when more solder paste volume is required.
Yes, you can reuse your DIY SMT stencil multiple times if properly cared for. Clean the stencil thoroughly after each use with isopropyl alcohol and a lint-free cloth to remove any solder paste residue. Store the stencil flat in a clean, dry place to prevent warping or damage. With proper maintenance, a DIY SMT stencil can last for numerous PCB assembly cycles.
Selecting the right solder paste is crucial for successful SMT assembly. Consider the following factors:
- Alloy composition (lead-free or leaded)
- Melting temperature (should match your reflow profile)
- Particle size (finer particles for smaller apertures)
- Flux type (no-clean, water-soluble, or rosin-based)
- Viscosity (affects printability and slump resistance)
Choose a high-quality solder paste that matches your PCB design requirements and reflow capabilities.
Common mistakes when using a DIY SMT stencil include:
- Poor stencil alignment with PCB pads
- Applying too much or too little pressure when spreading solder paste
- Using incorrect aperture sizes for specific component types
- Failing to clean the stencil properly between uses
- Not considering the stencil thickness in relation to component sizes
Avoid these mistakes by carefully following best practices and continuously refining your technique.
To improve the accuracy of your DIY SMT stencil:
- Use high-quality materials and precise cutting methods (e.g., laser cutting)
- Implement proper stencil tensioning techniques
- Consider using a stencil jig for consistent alignment
- Optimize aperture designs for different component types
- Regularly inspect and maintain your stencil
- Practice your technique and refine your process over time
By focusing on these aspects, you can significantly enhance the precision and reliability of your DIY SMT stencil applications.
