In the fast-paced world of electronics manufacturing, efficiency and precision are paramount. As the demand for smaller, more complex electronic devices continues to grow, the need for high-speed PCB assembly machines has become increasingly critical. Surface Mount Technology (SMT) has revolutionized the PCB assembly process, allowing for faster production, higher component density, and improved reliability. This article will explore the best PCB assembly machines for high-speed SMT production, their features, and how they contribute to streamlining the manufacturing process.

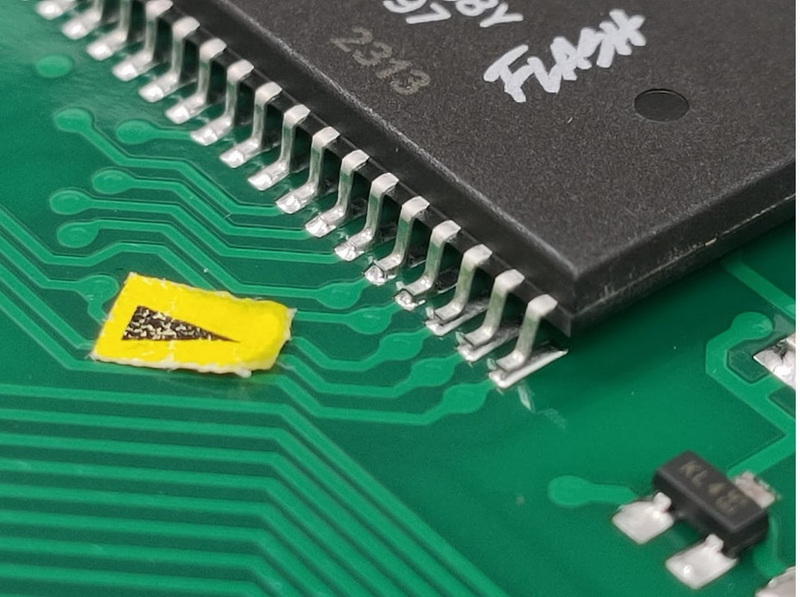

Before delving into the best machines for high-speed SMT production, it's essential to understand the SMT PCB assembly process. SMT is a method for producing electronic circuits in which components are mounted directly onto the surface of printed circuit boards (PCBs). This technique has largely replaced the older through-hole technology, offering numerous advantages in terms of miniaturization, performance, and production efficiency[1].
The SMT PCB assembly process typically involves several key steps:
1. Solder paste application
2. Component placement
3. Reflow soldering
4. Inspection and testing
Each of these steps requires specialized equipment to ensure accuracy, speed, and reliability. Let's explore the machines that excel in each of these areas for high-speed SMT production.
The first step in the SMT process is applying solder paste to the PCB. High-speed solder paste printers are crucial for ensuring precise and consistent solder paste deposition.
- High positional accuracy: The best solder paste printers offer repeated positioning accuracy of ±0.01mm and printing accuracy of 0.025mm[2].
- Automatic PCB calibration: This feature ensures proper alignment and reduces setup time.
- Squeegee pressure adjustment: Allows for optimal solder paste application across different board types.
- Automatic stencil cleaning: Maintains print quality over long production runs.
One example of a high-performance solder paste printer is the I.C.T-5151 model, which can handle PCB sizes from 50*50mm to 510*510mm and offers 2D inspection as a standard feature[2].

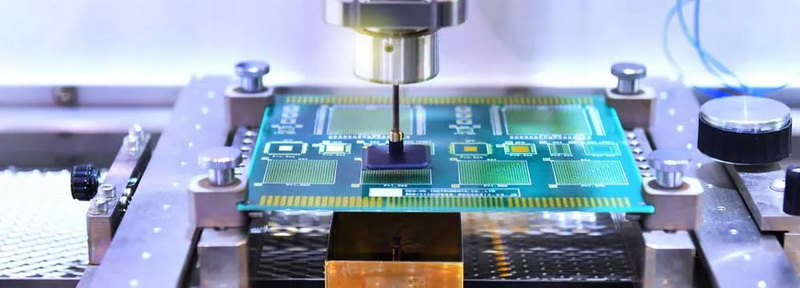

The heart of any high-speed SMT production line is the pick and place machine. These machines are responsible for accurately placing components onto the PCB at high speeds.
- High placement speed: Leading machines can place up to 78,000 components per hour (CPH)[2].
- Excellent placement accuracy: Top models achieve placement accuracy of ±40μm@μ±3σ[2].
- Multi-functional capability: The ability to handle a wide range of component sizes and types, from tiny 0402 components to larger 55mm parts[2].
- Advanced vision systems: Ensure accurate component recognition and placement.
The Samsung SM471 Plus is an example of a high-speed pick and place machine, featuring 10 spindles on 2 gantries and a placement speed of 78,000 CPH[2].
After component placement, the PCB assembly goes through a reflow oven to solder the components in place. High-speed SMT production requires reflow ovens that can maintain precise temperature profiles while handling high throughput.
- Multiple heating zones: Advanced models like the Lyra 933N/934N offer up to 9 preheating zones and 3 peak zones for optimal temperature control[2].
- Nitrogen protection system: Enhances soldering quality and reduces oxidation.
- Efficient cooling system: Ensures proper solidification of solder joints.
- Wide conveyor width: Accommodates various PCB sizes, with some models handling boards up to 686mm wide[2].
Quality control is crucial in high-speed SMT production. Automated Optical Inspection (AOI) and X-ray inspection systems play a vital role in ensuring the quality of assembled PCBs.
- High-resolution cameras: Enable detection of minute defects.
- Advanced algorithms: Quickly identify and categorize defects.
- 3D inspection capability: Allows for volume measurement of solder paste and component coplanarity checking.
- High throughput: Keeps pace with the rest of the production line.
For maximum efficiency, many manufacturers opt for fully integrated SMT production lines. These turnkey solutions combine all the necessary equipment into a seamless, automated system.
- Loader: Automatically feeds PCBs into the production line.
- Solder Paste Printer: Applies solder paste to the PCB.
- Pick and Place Machine: Places components onto the PCB.
- Reflow Oven: Solders components in place.
- Automated Optical Inspection (AOI): Checks for defects.
- Unloader: Removes completed PCBs from the line.
Integrated lines often include conveyor systems to move PCBs between stations and may incorporate additional equipment such as label mounters or cleaning machines[4].
When selecting the best PCB assembly machines for high-speed SMT production, several factors should be taken into account:
1. Production volume: Ensure the equipment can handle your required throughput.
2. Component mix: Choose machines that can accommodate the range of component sizes and types you work with.
3. PCB size and complexity: Select equipment that can handle your board sizes and layer counts.
4. Flexibility: Consider machines that can be easily reconfigured for different products.
5. Integration capabilities: Look for equipment that can be seamlessly integrated into your existing production line or as part of a new turnkey solution.
6. Support and maintenance: Evaluate the manufacturer's reputation for customer support and the availability of spare parts.
7. Future-proofing: Consider machines with upgradeable features to accommodate future production needs.
The field of PCB assembly is constantly evolving, with new technologies emerging to meet the demands of increasingly complex electronic devices. Some of the latest trends in PCB assembly machines for SMT production include:
Modern PCB assembly machines are increasingly being designed with Industry 4.0 principles in mind. This includes features such as:
- Data collection and analysis: Real-time monitoring of production metrics.
- Predictive maintenance: Using AI to anticipate and prevent equipment failures.
- Remote monitoring and control: Allowing operators to manage production from anywhere.
AI and machine learning are being incorporated into PCB assembly machines to improve:
- Component placement accuracy: Learning from past placements to optimize future ones.
- Defect detection: Enhancing the ability of AOI systems to identify and classify defects.
- Process optimization: Automatically adjusting machine parameters for optimal performance.
The trend towards fully automated production lines continues, with advancements in:
- Automated material handling: Reducing the need for human intervention in loading and unloading PCBs and components.
- Self-adjusting equipment: Machines that can automatically calibrate and adjust themselves based on the PCB and components being processed.
- Collaborative robots: Integration of cobots to work alongside human operators for tasks that require flexibility.
To illustrate the real-world benefits of advanced PCB assembly machines for SMT production, let's look at a couple of case studies:
A mid-sized electronics contract manufacturer implemented a new high-speed SMT production line featuring:
- A Neoden SMT pick and place machine with a placement speed of 40,000 CPH
- An advanced reflow oven with 7 heating zones
- An integrated AOI system
Results:
- 50% increase in production throughput
- 30% reduction in defect rates
- 20% decrease in production costs
An automotive electronics supplier upgraded their SMT production line with:
- A Samsung SM471 Plus pick and place machine (78,000 CPH)
- A high-precision solder paste printer with automatic stencil cleaning
- A nitrogen-equipped reflow oven
Results:
- 70% increase in production speed
- 40% reduction in setup time between product changes
- 25% improvement in first-pass yield
These case studies demonstrate the significant improvements in efficiency and quality that can be achieved with state-of-the-art PCB assembly machines for SMT production.
The best PCB assembly machines for high-speed SMT production are those that combine speed, accuracy, and flexibility to meet the demanding requirements of modern electronics manufacturing. From high-precision solder paste printers to lightning-fast pick and place machines and advanced reflow ovens, each component of the SMT production line plays a crucial role in achieving optimal results.
When selecting equipment for high-speed SMT production, it's essential to consider factors such as production volume, component mix, and future scalability. Integrated production lines offer the advantage of seamless automation, while emerging technologies like AI and Industry 4.0 integration promise even greater efficiencies in the future.
Ultimately, the best PCB assembly machine for high-speed SMT production will depend on the specific needs of each manufacturer. By carefully evaluating options and staying abreast of technological advancements, electronics manufacturers can ensure they have the equipment necessary to stay competitive in this fast-paced industry.
High-speed SMT pick and place machines can vary significantly in their throughput capabilities. Top-tier machines like the Samsung SM471 Plus can achieve placement speeds of up to 78,000 components per hour (CPH) under optimal conditions[2]. However, more common high-speed machines typically operate in the range of 30,000 to 60,000 CPH. The actual throughput will depend on factors such as component size, placement accuracy requirements, and PCB complexity.
Nitrogen protection in reflow ovens significantly enhances the quality of SMT production by:
- Reducing oxidation of solder paste and component leads
- Improving wetting and spreading of solder, resulting in better joint formation
- Decreasing the formation of voids in solder joints
- Allowing for lower peak temperatures, which can be beneficial for temperature-sensitive components
- Extending the life of flux in the solder paste, potentially allowing for longer reflow profiles
These benefits lead to improved solder joint reliability and can increase the overall yield of the SMT production process.
2D and 3D solder paste inspection systems differ in their capabilities and the type of data they provide:
2D Inspection:
- Measures the length and width of solder paste deposits
- Typically faster and less expensive than 3D systems
- Suitable for detecting issues like missing paste or bridging
3D Inspection:
- Measures length, width, and height of solder paste deposits
- Calculates the volume of applied solder paste
- Provides more comprehensive data for process control
- Can detect issues like insufficient paste volume that may not be apparent in 2D
While 3D systems offer more detailed information, 2D systems may be sufficient for many applications and offer a good balance of speed and cost-effectiveness.
Automated optical inspection (AOI) systems play a crucial role in maintaining quality in high-speed SMT production by:
- Rapidly inspecting PCBs for defects such as missing components, incorrect placements, or solder joint issues
- Providing real-time feedback to allow for immediate process adjustments
- Reducing the need for manual inspection, which can be time-consuming and prone to human error
- Enabling 100% inspection of boards, rather than relying on sampling
- Generating data for statistical process control and traceability
By quickly identifying and addressing issues, AOI systems help maintain high production speeds while ensuring quality standards are met.
When integrating new PCB assembly machines into an existing SMT production line, several important considerations should be made:
- Compatibility: Ensure the new equipment can interface with existing machines and software systems.
- Space requirements: Verify that the new machines fit within the available floor space and that there's adequate room for operation and maintenance.
- Power and utilities: Check that the facility can provide the necessary power, compressed air, and other utilities required by the new equipment.
- Material handling: Consider how the new machines will affect the flow of materials through the production line.
- Training: Plan for operator and maintenance staff training on the new equipment.
- Production downtime: Schedule the integration to minimize disruption to ongoing production.
- Future scalability: Ensure the new equipment allows for future expansion or upgrades.
- Software integration: Verify that the new machines' software can integrate with existing manufacturing execution systems (MES) or enterprise resource planning (ERP) systems.
Careful planning and consideration of these factors can help ensure a smooth integration of new PCB assembly machines into an existing SMT production line, minimizing disruptions and maximizing the benefits of the new equipment.
